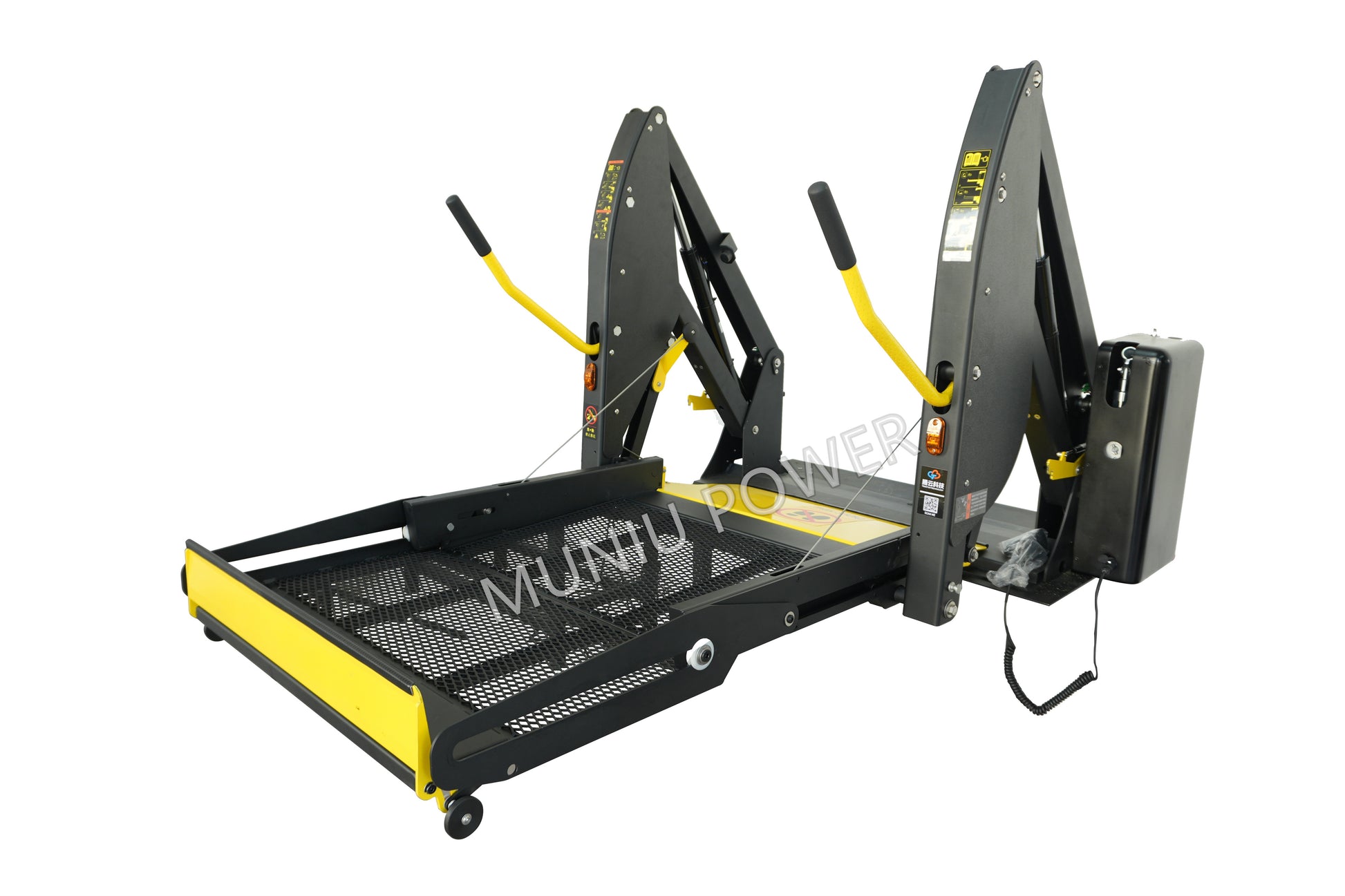

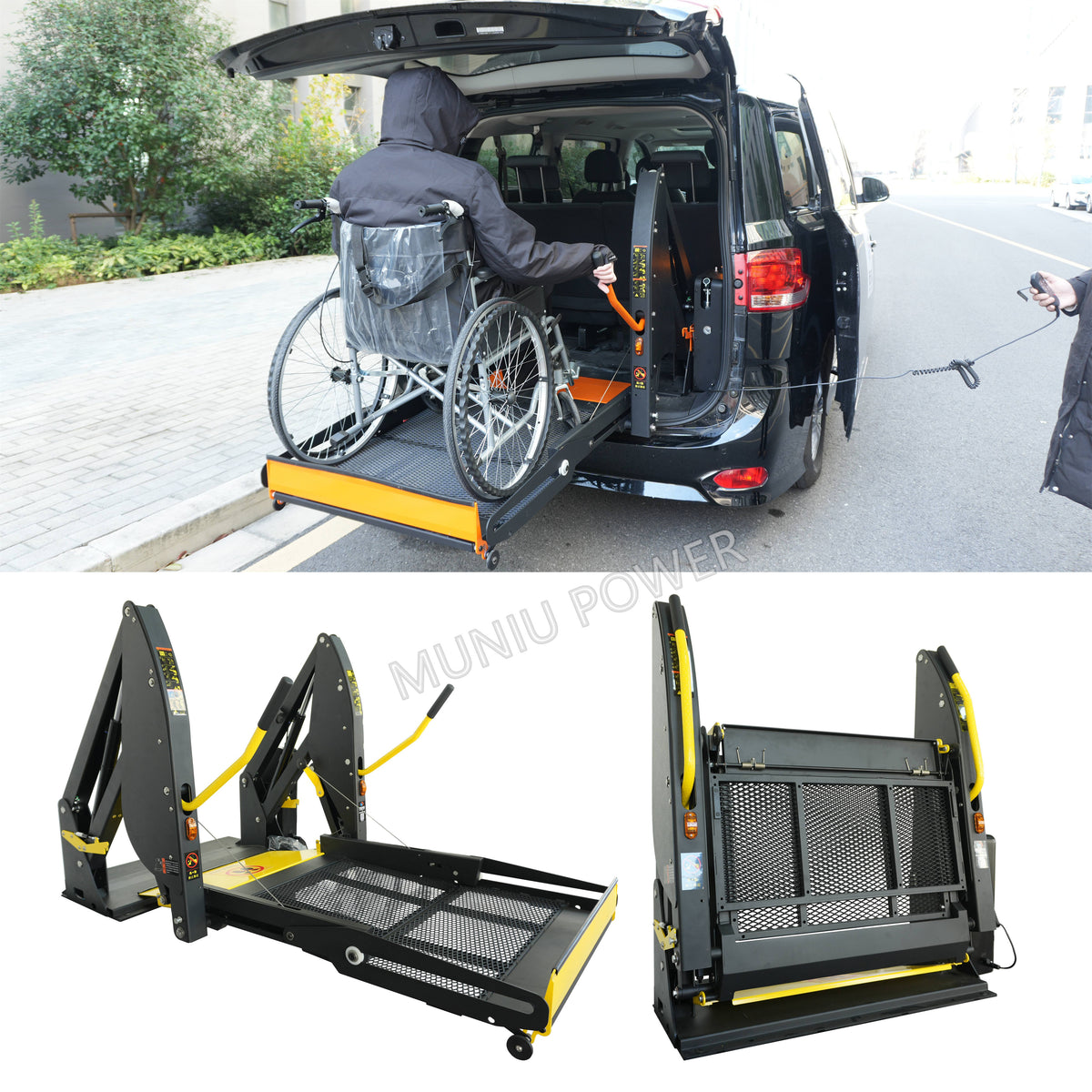

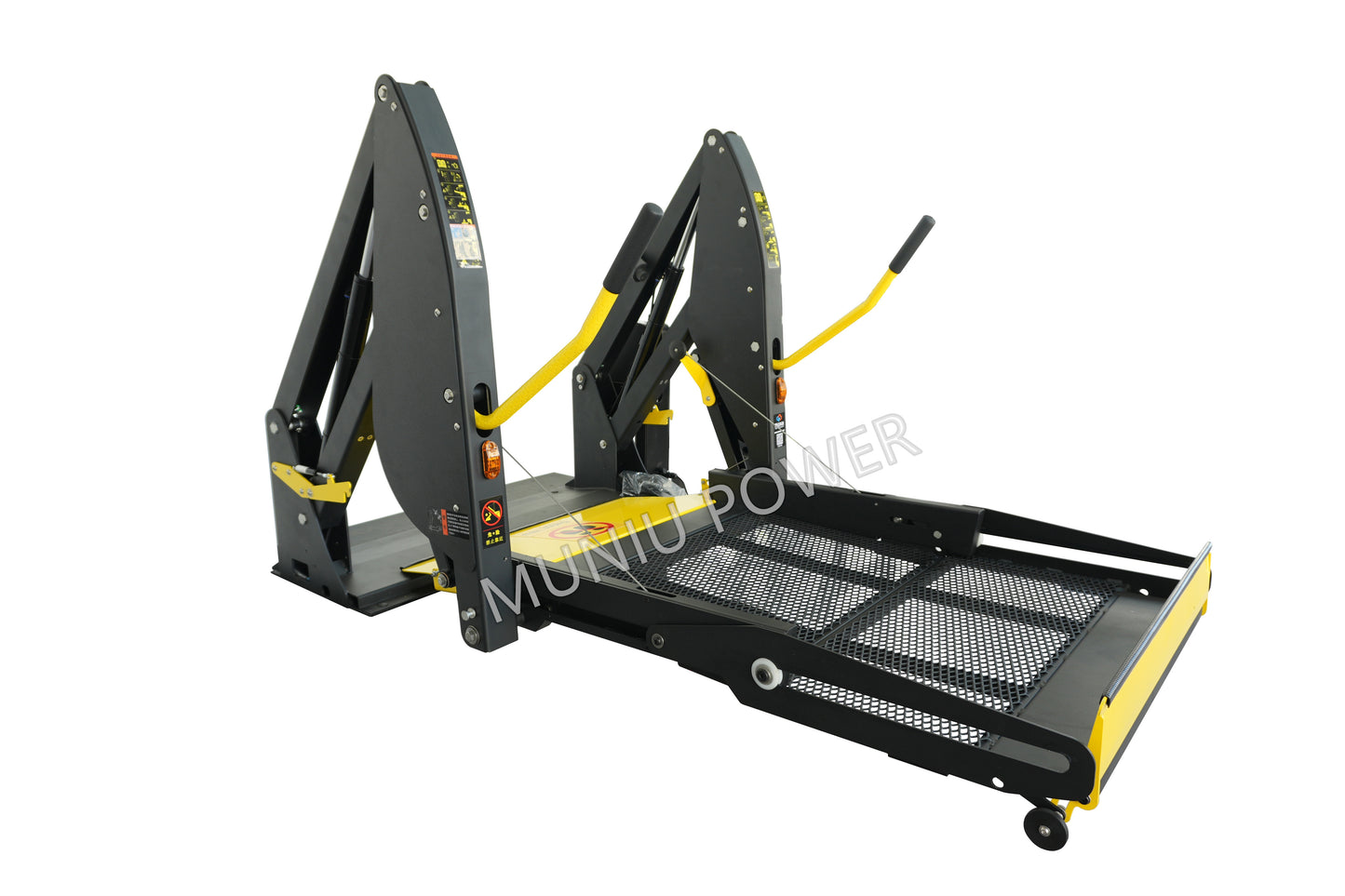

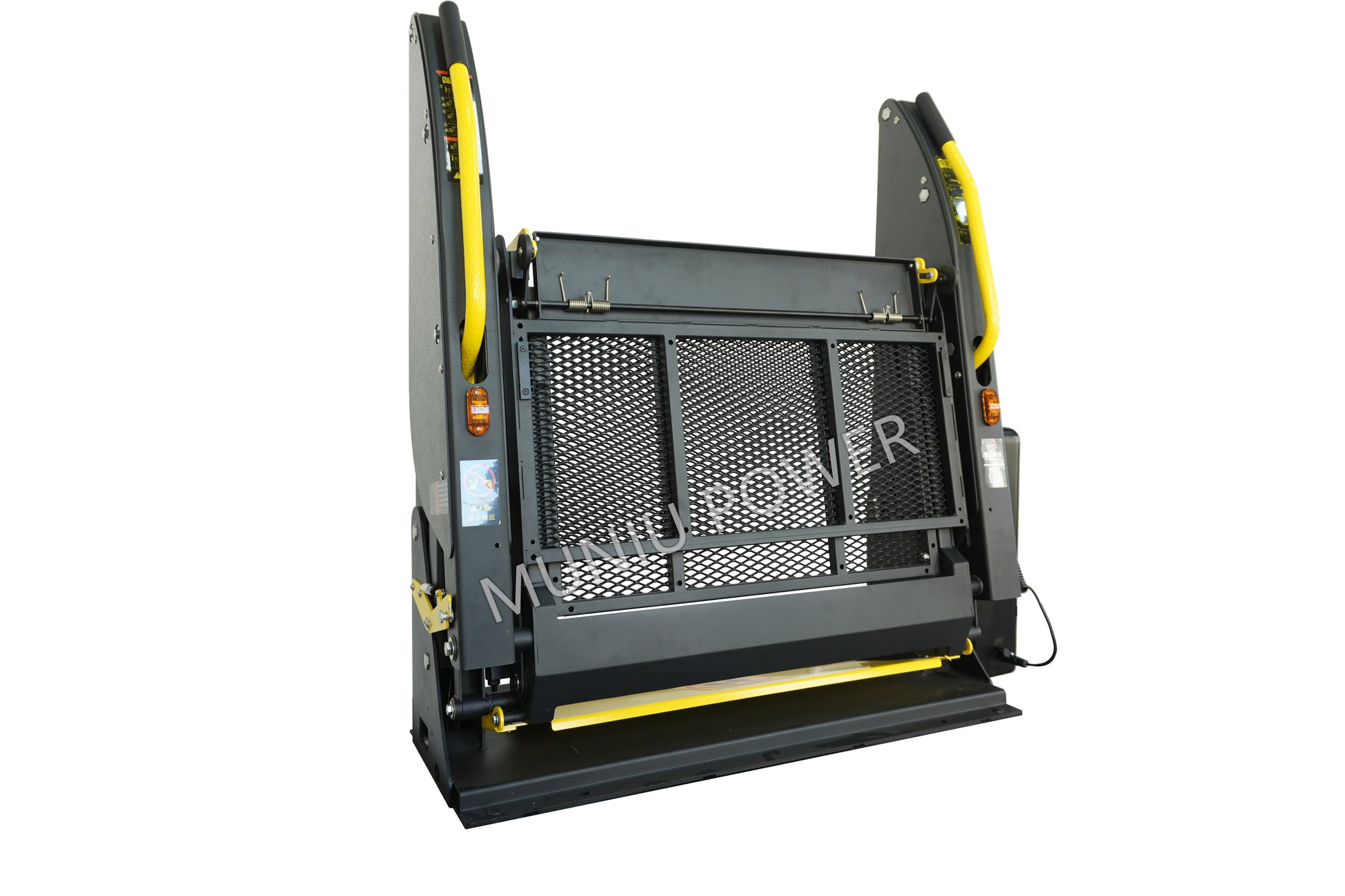

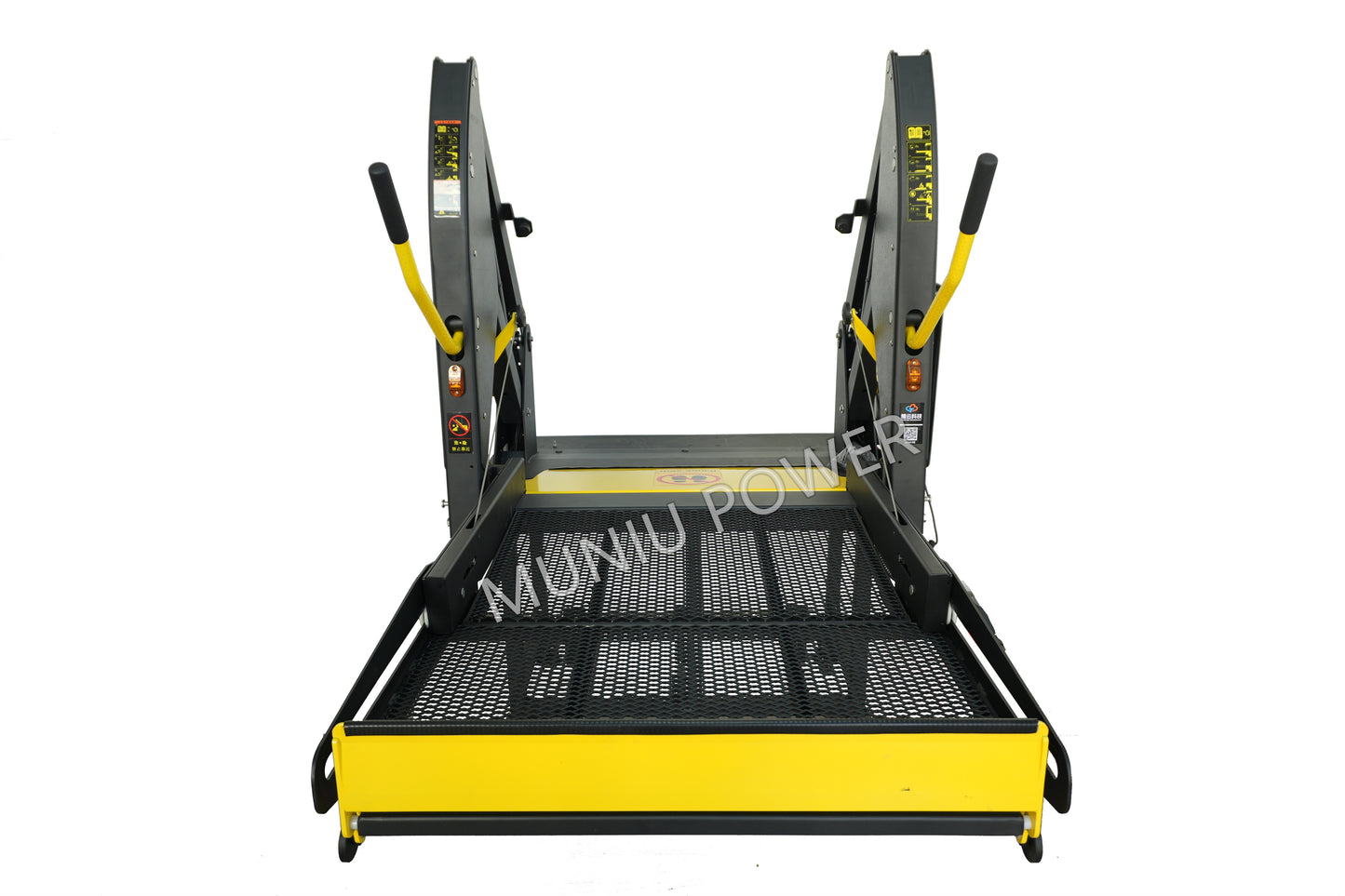

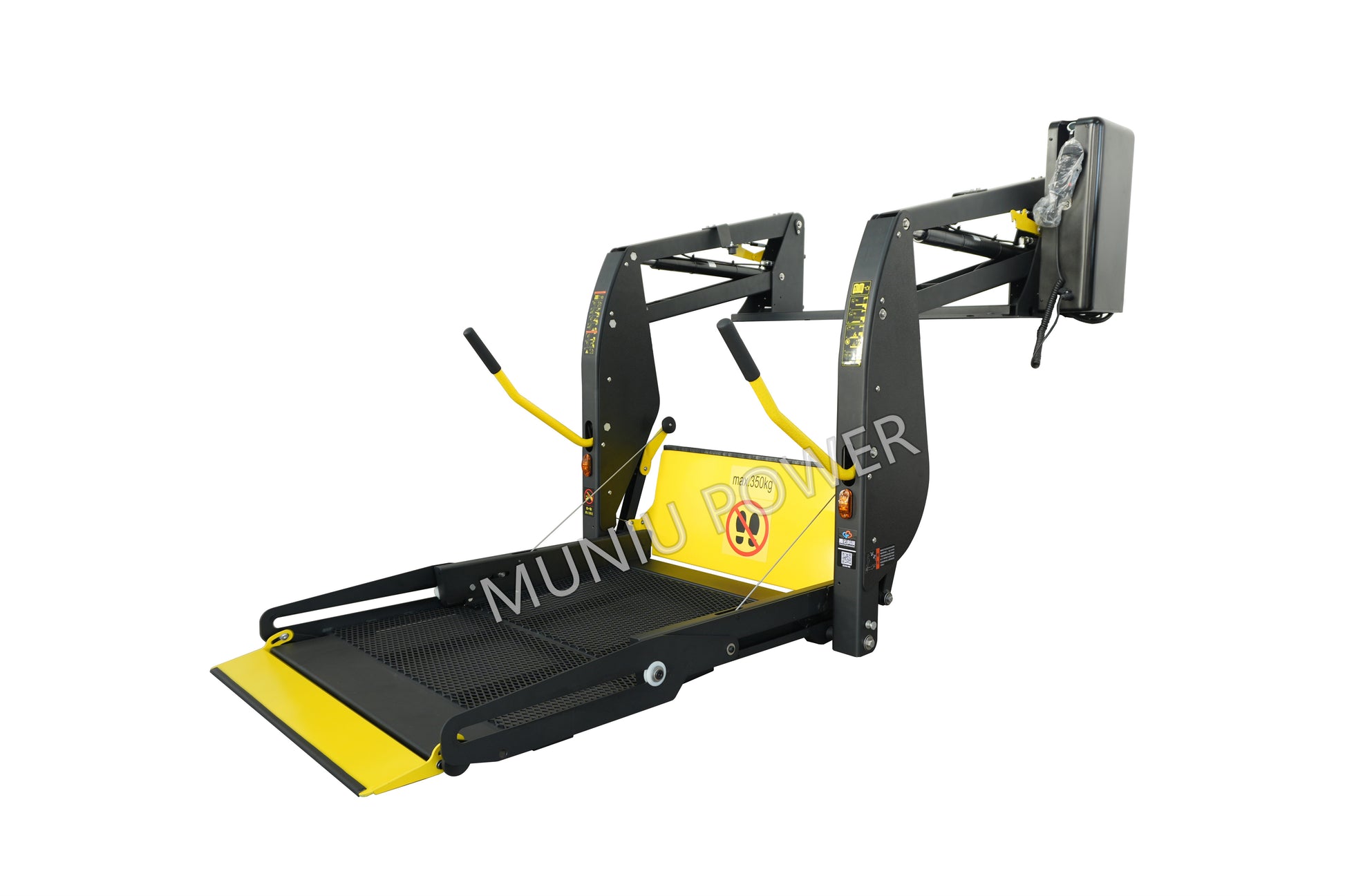

MNL3A Heavy Duty 400kg Loading Wheelchair Lifting Platform for Disabled, Electro-Hydraulic Van Lift

700x1040

Platform Clear Width:700mm
Platform Clear Length:1040mm
Total Overall Height:1120mm
Total Overall depth:385mm
Total overall width:1160mm
Door Opening Clear Width:1030mm
Door Opening Clear Height:1130mm
Lifting Height:880mm
Weight:140kg

750x1200

Platform Clear Width:750mm
Platform Clear Length:1200mm
Total Overall Height:1130mm
Total Overall depth:385mm
Total overall width:1210mm
Door Opening Clear Width:1080mm
Door Opening Clear Height:1140mm
Lifting Height:900cm
Weight:145kg

800x1300

Platform Clear Width:800mm
Platform Clear Length:1300mm
Total Overall Height:1130mm
Total Overall depth:385mm
Total overall width:1260mm
Door Opening Clear Width:1130mm
Door Opening Clear Height:1140mm
Lifting Height:900mm
Weight:156kg

Operating Voltage: 12/24Vdc
Rated Power: 500W
Load Capacity: 400kg

• 🏋️ Heavy-Duty 400KG Load Capacity: Engineered for high durability, effortlessly lifting heavy electric wheelchairs, mobility scooters, and occupants with total stability.

• ⚡ Electro-Hydraulic Smooth Operation: Powered by a 12V/24V DC electro-hydraulic system (500W) for quiet, safe, and efficient lifting performance.

• 🚗 Smart Split-Platform Design: The automatic retractable split platform (750mm x 1200mm clear space) folds neatly when not in use, preserving rear visibility and luggage space.

• 🎮 Wireless Remote & Easy Controls: Convenient remote control operation allows a single caregiver or driver to manage loading and unloading seamlessly.

• 🛡️ Built-In Safety Features: Equipped with non-slip platform surfaces, safety roll-stops, and sturdy handrails to ensure full security during transfer.

• 🚐 Universal Vehicle Compatibility: Ideal for commercial vans, MPVs, WAV (Wheelchair Accessible Vehicle) conversions, and municipal handicap transport services.

• Heavy-Duty 400kg Electro-Hydraulic Wheelchair Van Lift (MNL3A Series)

  Upgrade your vehicle's accessibility with the MUNIU MNL3A Electro-Hydraulic Wheelchair Lift. Designed for commercial transport fleets, WAV vehicle converters, and personal accessibility vehicles, this heavy-duty lift provides an effortless, safe, and reliable loading solution for wheelchair users and mobility scooter riders.

  Why Choose the MUNIU MNL3A Lift?

  • Unmatched Lifting Strength (400KG): Unlike standard 300kg lifts, the MNL3A handles up to 400kg (880 lbs), making it fully compatible with heavy-duty power wheelchairs, bariatric mobility devices, and passengers.

  • Space-Saving Split Platform: Features a 750mm x 1200mm usable platform area that automatically splits and folds vertically when stowed. This ensures clear rear-window visibility and leaves adequate aisle space inside the vehicle.

  • Reliable Electro-Hydraulic Power Unit: Operates smoothly on a 12V/24V DC power system with a low-power-consumption 500W motor, delivering quiet and consistent hydraulic operation in all weather conditions.

  • User-Friendly Remote Control: Enables quick and safe operation via hand-held remote control, reducing physical effort for caregivers and empowering independent mobility drivers.
